VAS - 18
- Airflow
- 18000 CMH / 10600 CFM
- Cooling Area
- 1000 sq.ft Area
- Power
- 1.1 kW / 1440 RPM
- Voltage
- 1 Phase 230V / 3 Phase 415V
- Ideal for mid-sized factory bays
- 3-way discharge flexibility
- Low energy consumption (1.1 kW)
Flagship Cooling

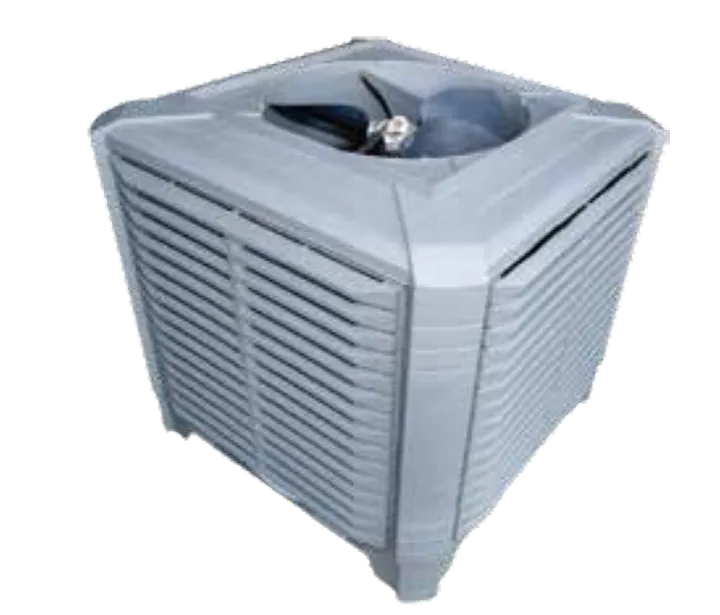

Ductable Industrial Air Coolers
High-capacity evaporative ductable air coolers engineered for heavy industrial plants, factories, warehouses and commercial halls with top, down, or side discharge.
OEM Direct Manufacturing
Turnkey Ducting & Layout
Bangalore Works Support
Model Lineup
Available Industrial Configurations
Select a certified standard model or talk to our application engineers for custom discharge and static pressure sizing.
VAS - 25
- Airflow
- 25000 CMH / 14715 CFM
- Cooling Area
- 1500 sq.ft Area
- Power
- 2 kW / 1440 RPM
- Voltage
- 1 Phase 230V / 3 Phase 415V
- Aerodynamic 5-leaf axial fan
- High air delivery (14,715 CFM)
- Up to 1,500 sq.ft coverage
VAS - 30
- Airflow
- 30000 CMH / 17657 CFM
- Cooling Area
- 2000 sq.ft Area
- Power
- 3 kW / 1440 RPM
- Voltage
- 3 Phase / 415 Volts
- Heavy-duty 3 Phase industrial power
- Large 40L water capacity
- Massive 17,657 CFM throw
VAS - 50
- Airflow
- 50000 CMH / 29450 CFM
- Cooling Area
- 3000 sq.ft Area
- Power
- 4.5 kW / 1440 RPM
- Voltage
- 3 Phase / 415 Volts
- Massive 50,000 CMH airflow capacity
- Cools up to 3,000 sq.ft single unit
- Rugged 125 kg industrial build
| Technical Parameter | VAS - 18 | VAS - 25 | VAS - 30 | VAS - 50 |
|---|---|---|---|---|
| Air Flow Capacity | 18000 CMH / 10600 CFM | 25000 CMH / 14715 CFM | 30000 CMH / 17657 CFM | 50000 CMH / 29450 CFM |
| Cooling Area | 1000 sq.ft Area | 1500 sq.ft Area | 2000 sq.ft Area | 3000 sq.ft Area |
| Air Discharge | Top / Down / Side | Top / Down | Top / Down | Top / Down |
| Power | 1.1 kW / 1440 RPM | 2 kW / 1440 RPM | 3 kW / 1440 RPM | 4.5 kW / 1440 RPM |
| Voltage | 1 Phase 230V / 3 Phase 415V | 1 Phase 230V / 3 Phase 415V | 3 Phase / 415 Volts | 3 Phase / 415 Volts |
| Control System | Single Speed | Single Speed | Single Speed | Single Speed |
| Size | 1100 x 1100 x 970 mm H | 1100 x 1100 x 1150 mm H | 1300 x 1300 x 1180 mm H | 1500 x 1500 x 1500 mm H |
| Air Outlet Size | 670 x 670 mm | 670 x 670 mm | 790 x 790 mm | 900 x 900 mm |
| Tank Capacity | 30 Liters | 30 Liters | 40 Liters | 60 Liters |
| Weight | 68 Kgs | 77 Kgs | 100 Kgs | 125 Kgs |
| Cooling Pad Size (H x L x W) | 670 x 670 x 100 mm | 880 x 790 x 100 mm | 870 x 870 x 100 mm | 1100 x 1000 x 100 mm |
| Fan Blade | Axial Fan Blade / 3 Leaf Fan Blade | Axial Fan Blade / 5 Leaf Fan Blade | Axial Fan Blade / 4 Leaf Fan Blades | Axial Fan Blade / 4 Leaf Fan Blades |
Engineering Note: Must use suitable protective devices (single phase preventer, voltage stabilizer, spike buster). Water TDS < 400 ppm recommended.
