High Volume Low Speed
HVLS Giant Fans (Floor & Ceiling)
PMSM & BLDC permanent magnet synchronous motor HVLS fans. Whisper quiet (<50 dB), 30% lower energy consumption, covering up to 3,500+ sq.ft with natural breeze cooling.
OEM Direct Manufacturing
Turnkey Ducting & Layout
Bangalore Works Support
Engineered Range
Floor & Ceiling HVLS Options
Permanent Magnet Synchronous Motors (PMSM) for silent operation, zero maintenance, and maximum air throw.
BIG FAN – BLDC / PMSM

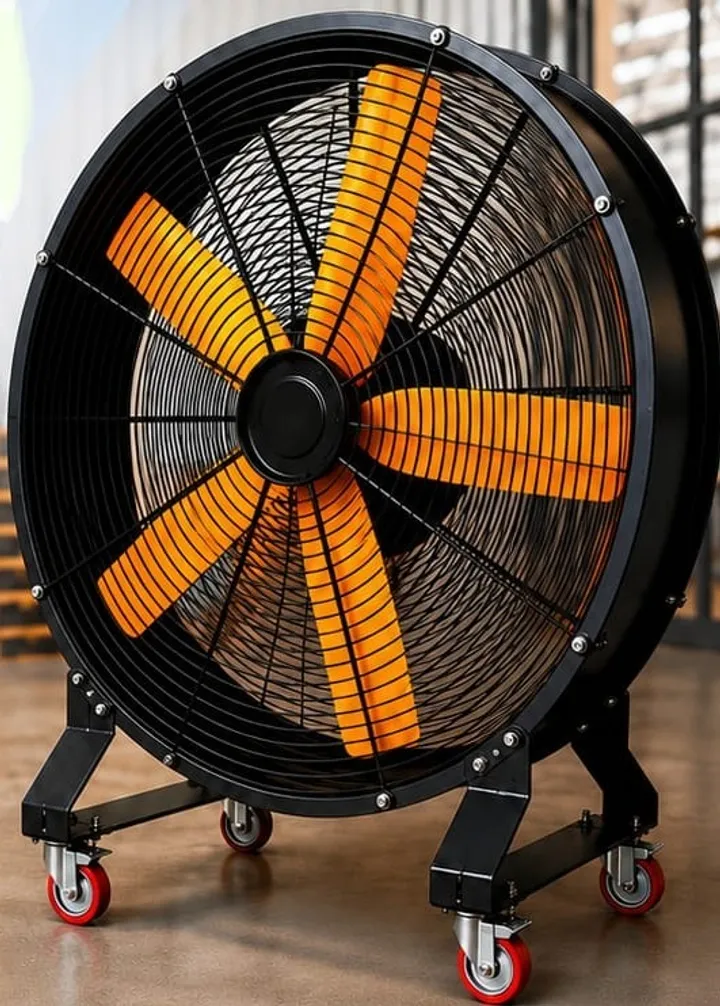

Floor Mounted HVLS Mobile Fan
- Heavy-duty directional lock casters for effortless relocation across factory floor
- 38,000 CMH massive column air displacement without ductwork
- Zero gear maintenance brushless PMSM drive
- Ideal for assembly lines, gyms, loading docks, workshops and hangar floors
VALUTECH HVLS CEILING PMSM
Ceiling Mounted Industrial HVLS Fan
- Permanent Magnet Synchronous Motor (PMSM) provides extreme high torque at low RPM
- No gearbox oil leaks, no mechanical degradation
- Dramatically reduces air conditioning operating costs by up to 25-30% through destratification
- Aviation-grade 6061T6 aluminum alloy aerofoil blades for optimal aerodynamic efficiency
Floor Mounted HVLS Mobile Fan (BIG FAN – BLDC / PMSM)
| Model | BIG FAN – BLDC / PMSM |
|---|---|
| Max Airflow | 38,000 CMH |
| Effective Area Cover | 3,500 Sqft (Approx) |
| Rated Voltage | 220 – 240 V |
| Power (W / Hp) | 600 W / 0.75 HP |
| Weight | 60 Kgs |
| Product Dimensions | 1510 x 790 x 1680 mm (L x W x H) |
| Fan Diameter | 50 Inches |
| Ring Diameter | 54 Inches |
| Air Throw Distance | 50 ft (Approx) |
Ceiling Mounted Industrial HVLS Fan (VALUTECH HVLS CEILING PMSM)
| Motor Technology | PMSM (Permanent Magnet Synchronous Motor) |
|---|---|
| Service Interval | > 1,00,000 Hours (24x7 continuous rated) |
| Energy Efficiency | 30% Lower Power Consumption vs traditional gear HVLS |
| Sound Level | < 50 dB @ 3 meters (Gearless Direct Drive) |
| Blades | 5 Blade Aerospace Al Alloy 6061T6 |
| Safety Systems | Primary & Secondary Anti-Fall Protection on all parts |
| Applications | Airports, Warehouses, Railway Stations, Malls, Cinemas |
Engineering Note: PMSM Brushless Motor with High Torque at Low RPM.
