VASEX - 400
- Airflow
- 3400 CMH
- Power
- 0.15 kW
- Impeller
- 350 mm
- Frame
- 400 x 400 x 275 mm
- Compact wall footprint
- Energy efficient 0.15 kW motor
- Direct drive simplicity
Heavy Duty Ventilation

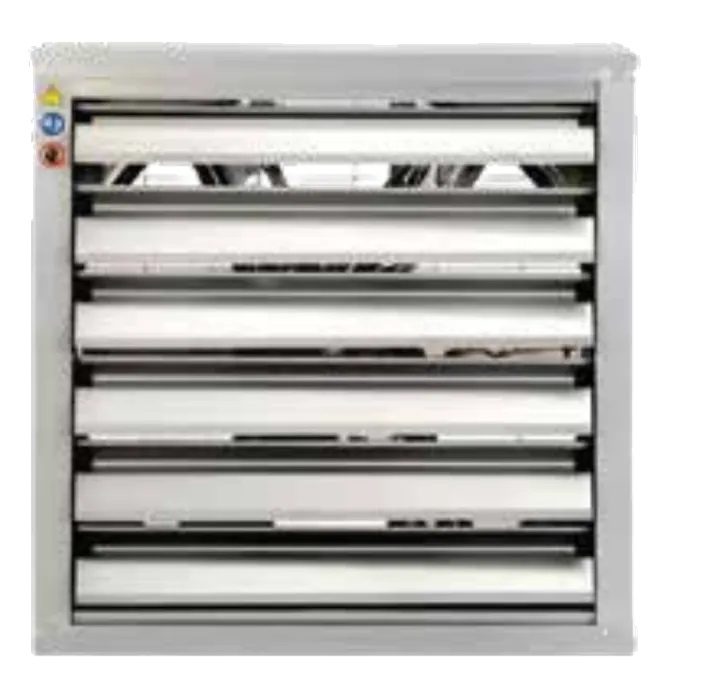

Industrial Wall Exhaust Fans
High-velocity industrial wall exhaust fans designed for warehouses, chemical bays, manufacturing halls and commercial kitchens requiring rapid air changes.
OEM Direct Manufacturing
Turnkey Ducting & Layout
Bangalore Works Support
Model Lineup
Available Industrial Configurations
Select a certified standard model or talk to our application engineers for custom discharge and static pressure sizing.
VASEX - 600
- Airflow
- 8500 CMH
- Power
- 0.37 kW
- Impeller
- 500 mm
- Frame
- 600 x 600 x 275 mm
- 8,500 CMH air displacement
- 500 mm high-efficiency impeller
- Low noise balanced operation
VASEX - 800
- Airflow
- 18000 CMH
- Power
- 0.37 kW
- Impeller
- 710 mm
- Frame
- 800 x 800 x 400 mm
- 3 Phase 415V continuous duty
- Available in Direct or Belt drive
- High air exchange for factories
VASEX - 1000
- Airflow
- 23000 CMH
- Power
- 0.55 kW
- Impeller
- 900 mm
- Frame
- 1000 x 1000 x 400 mm
- 900 mm wide impeller
- 23,000 CMH rapid ventilation
- Heavy gauge steel frame
VASEX - 1380
- Airflow
- 44000 CMH
- Power
- 1.1 kW
- Impeller
- 1250 mm
- Frame
- 1380 x 1380 x 400 mm
- Mega 44,000 CMH high volume capacity
- 1250 mm industrial aerofoil blades
- Maximum airflow for large spans
| Technical Parameter | VASEX - 400 | VASEX - 600 | VASEX - 800 | VASEX - 1000 | VASEX - 1380 |
|---|---|---|---|---|---|
| Air Flow Capacity | 3400 CMH | 8500 CMH | 18000 CMH | 23000 CMH | 44000 CMH |
| Frame Size in mm | 400 x 400 x 275 mm | 600 x 600 x 275 mm | 800 x 800 x 400 mm | 1000 x 1000 x 400 mm | 1380 x 1380 x 400 mm |
| Impeller Dia | 350 mm | 500 mm | 710 mm | 900 mm | 1250 mm |
| Power | 0.15 kW | 0.37 kW | 0.37 kW | 0.55 kW | 1.1 kW |
| Voltage | Single Phase / 220 Volts | Single Phase / 220 Volts | 3 Phase / 415 Volts | 3 Phase / 415 Volts | 3 Phase / 415 Volts |
| Drive | Direct drive | Direct drive | Direct drive / Belt Drive | Direct drive / Belt Drive | Direct drive / Belt Drive |
Engineering Note: Must suitable rated MPCB, Protective device like single phase preventer, voltage stabilizer, spike buster etc.
